| Clour | Size | Products' Specification & Description | Tube OD | Length of Tube | Product Code |
| Grey | Neonatal/24H/Tracheostomy | Double Swivel Elbow Tracheostomy, Built in MDI Adapter, Flex Tube | 5Fr (1.7mm) | 300mm | MC-02400 |
| Light Green | Neonatal/24H/Tracheostomy | Double Swivel Elbow Tracheostomy, Built in MDI Adapter, Flex Tube | 6Fr (1.95mm) | 300mm | MC-02401 |
| Grey | Neonatal/24H/Endotracheal | Double Swivel Elbow Endotracheal, Built in MDI Adapter, Flex Tube | 5Fr (1.7mm) | 300mm | MC-02410 |
| Light Green | Neonatal/24H/Endotracheal | Double Swivel Elbow Endotracheal, Built in MDI Adapter, Flex Tube | 6Fr (1.95mm) | 300mm | MC-02411 |

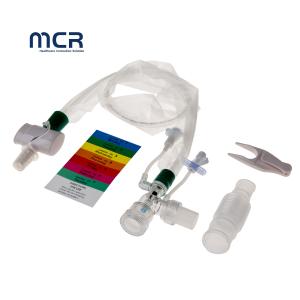

Product Descipition For Closed Suction Catheter Green
- Continuous Breathing
Simultaneously ventilation
- Soft Blue Suction Tip
This design reduces damage to the patient while suctioning.
After returning the catheter, the tip of the tube is easier for irrigational cleaning.
- Double Swivel Connector
15mm connector of Double Swivel
- Disconnecting Wedge
Designed to equip the wedge with both disconnecting and clipping functions
- For Endotracheal Tube and Tracheostomy Tube
Designed for endotracheal and tracheostomy tube using
Tubes with different length are available
- Prevent Cross Infection
Designed with a protective sleeve to isolate the bacteria inside and help caregivers avoid cross-inflection.
Application/Usage
The intended use of the closed suction catheter system is to safely and effectively remove secretions from a patient's airway while they are mechanically ventilated, without having to disconnect them from the ventilator circuit.
Specifically, the closed suction catheter is designed for use in patients who require:
-
Airway suctioning - The catheter allows for periodic removal of mucus, secretions, and other debris that can accumulate in the endotracheal tube or tracheostomy.
-
Maintenance of ventilation - By keeping the patient connected to the ventilator, the closed system helps maintain oxygenation and ventilation during the suctioning process.
-
Infection prevention - The enclosed, sterile design of the closed suction catheter helps reduce the risk of introducing pathogens into the respiratory tract and prevents cross-contamination.
-
Patient comfort - Compared to open suctioning, the closed system is generally less traumatic and uncomfortable for the patient.
Company Profile
MCREAT (GUANGZHOU) BIO-TECH CO., LTD. is located in Huachuang Industrial Park, the "first City of Cultural and Creative
Industries in China"gathered by thousands of enterprises in Panyu District, Guangzhou City.
There is a plant area of 5,300 square meters, a production workshop of 2,500 square meters, including 2,200 square meters of
100,000 level purification workshop, a warehouse of 900 square meters, and a biological experiment center of 300 square meters.
There are more than 30 sets of main production equipment and 6 sets of inspection equipment. With 195
staff, including 31 managers, 13 production technicians and 151 operators,the company’ s personnel management, product quality
management,system, production, testing equipment, technical capacity, etc. can meet the product requirements.
The company is committed to the R & D and production of respiratory,anesthesia, ICU, and emergency medical consumables, accepting
OEM at home and abroad, bidding and sales. The company mainly produces and operates class I and II medical consumables,including a variety of Closed suction catheter, Stomach Feeding Tube, Vedio tracheal tube,
Vedio laryngeal mask airway, surgical mask and so on.
We look forward to the future, adhere to the spirit of inclusiveness,professionalism, continuous development, and self-innovation, and strive to become an enterprise that owns core competitiveness and can sustainably develop.
Packaging & Delivery
-Packaging Details
-Packing: 1pc/sterilized pouch, 10pcs / inner box, Outer packing: 100pcs / shipping carton
-Delivery Time: Within 20 days. It depends on the quantity of order
Suctioning Procedure
Caution-always use the recommended vacuum levels./Consider length of suctioning time
1.Grip the three-way adaptor in one hand and with the other hand feed the suction
a catheter into the Endotracheal tube/ Tracheostomy tube, to the required depth.
Depth markers can be visible through the protective cover for your guidance.
2.Once the suction catheter is in the desired position/ depth depress the vacuum
Control valve to apply suction.
3. Remove the suction catheter until the protective sleeve is straight.
4.Repeat steps1-3 as necessary.
